How to Associate Files

Introduction

Let's take an example of file associations for discussion attachments on inventory. When users discuss particular figures on the discussion board, they might upload a photo relevant to the figure inventory. So, this photo will be associated with the discussion board and figure inventory.

Get Entities

Before creating any file associations, we need to get the entities. We need the entity's name and references to connect or associate the file.

GraphQL API Sandbox

There are many ways to get entities in the ROQ platform. One of the ways is to use the projectEntities() (opens in a new tab) API method. With this method, we can get all the project entities.

query projectEntities($limit: Int = 20) {
  projectEntities(limit: $limit) {
    totalCount
    data {
      id
      name
    }
  }
}

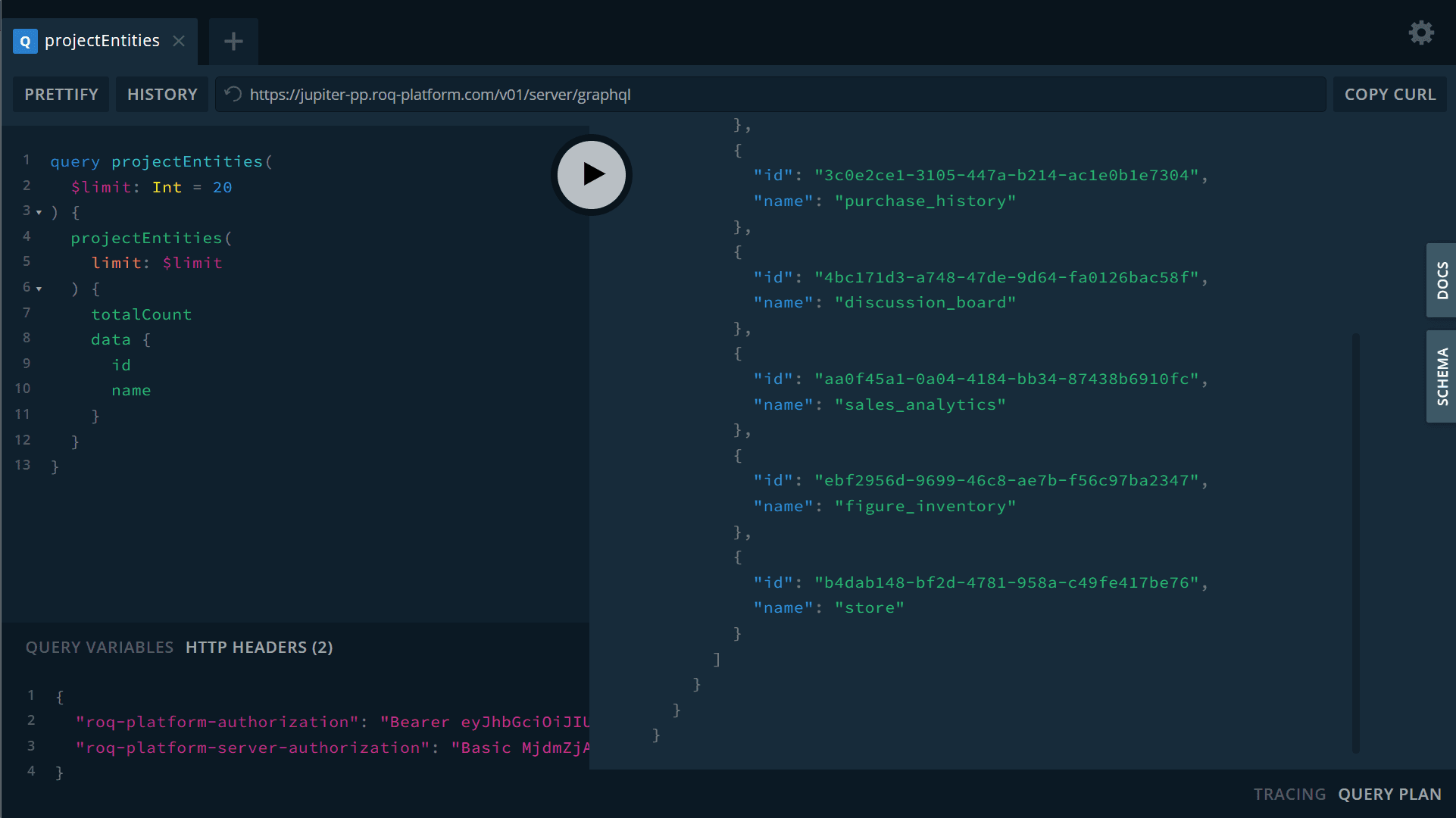

We can run the GraphQL query directly in the sandbox:

We should focus on the entities of discussion_board and figure_inventory because, as we stated earlier, we need to associate a file photo with both entities.

graphqlRequest()

GraphQL sandbox is perfect for application development because we can get the data result directly. Hence, we know how to process or integrate the data into the application. However, we can automate the GraphQL query in the application using ROQ's API graphqlRequest() for flexibility.

const entitiesQuery = `
query projectEntities($limit: Int = 20) {
  projectEntities(limit: $limit) {
    totalCount
    data {
      id
      name
    }
  }
}
`
const entitiesResult = await roqClient.asSuperAdmin().graphqlRequest(entitiesQuery)
console.log(entitiesResult.data.projectEntities.data)

The entitiesResult will contain entities data:

[
  { id: '7ee7be71-91dd-4d5c-93e1-59eef708059a', name: 'user' },
  {
    id: '820cf871-d95f-486b-bd17-fc8e5c7a97fe',
    name: 'collector_profile'
  },
  {
    id: '3c0e2ce1-3105-447a-b214-ac1e0b1e7304',
    name: 'purchase_history'
  },
  {
    id: '4bc171d3-a748-47de-9d64-fa0126bac58f',
    name: 'discussion_board'
  },
  {
    id: 'ebf2956d-9699-46c8-ae7b-f56c97ba2347',
    name: 'figure_inventory'
  },
  { id: 'b4dab148-bf2d-4781-958a-c49fe417be76', name: 'store' }
]

We need the id and name fields of discussion_board and figure_inventory entities to create file associations.

Create File Associations

The file that needs to be associated can be accessed using the files() or file() API. As long as the file ID is known, we can associate it. We will use the createFileAssociations() API method to create file associations with entities.

For example, for a file photo or image with the file ID 97eeb4da-d402-4a89-b034-bcb277b9e65c, and we want to associate it with the entity discussion_board:

const fileAssocStatus = await roqClient.asSuperAdmin().createFileAssociation({
  createFileAssociationDto: {
    entityName: "discussion_board",
    entityReference: "4bc171d3-a748-47de-9d64-fa0126bac58f",
    fileId: "97eeb4da-d402-4a89-b034-bcb277b9e65c"
  }
})

The code above will return file association data:

{
  createFileAssociation: {
    id: '4a452ade-a83c-44ae-b7ba-d207a1ab903b',
    createdAt: '2023-08-25T12:33:06.350Z',
    updatedAt: '2023-08-25T12:33:06.350Z',
    entityReference: '4bc171d3-a748-47de-9d64-fa0126bac58f',
    entityName: 'discussion_board',
    fileId: '97eeb4da-d402-4a89-b034-bcb277b9e65c'
  }
}

Later on, we need to associate the file with the figure_inventory entity, too:

const fileAssocStatus = await roqClient.asSuperAdmin().createFileAssociation({
  createFileAssociationDto: {
    entityName: "figure_inventory",
    entityReference: "ebf2956d-9699-46c8-ae7b-f56c97ba2347",
    fileId: "97eeb4da-d402-4a89-b034-bcb277b9e65c"
  }
})

And if we check the file data using file() API, we can get all the file associations data

const fileDetailsAgain = await roqClient.asSuperAdmin().file({
	id: "97eeb4da-d402-4a89-b034-bcb277b9e65c",
	withFileAssociations: true
})
console.log(fileDetailsAgain.file.fileAssociations.data)

The response will be an array containing the file associations data:

[
  {
    id: '0903ed50-62cd-4338-b1ec-fcc4a7bf9125',
    createdAt: '2023-08-25T12:44:38.099Z',
    updatedAt: '2023-08-25T12:44:38.099Z',
    entityReference: 'ebf2956d-9699-46c8-ae7b-f56c97ba2347',
    entityName: 'figure_inventory',
    fileId: '97eeb4da-d402-4a89-b034-bcb277b9e65c'
  },
  {
    id: '4a452ade-a83c-44ae-b7ba-d207a1ab903b',
    createdAt: '2023-08-25T12:33:06.350Z',
    updatedAt: '2023-08-25T12:33:06.350Z',
    entityReference: '4bc171d3-a748-47de-9d64-fa0126bac58f',
    entityName: 'discussion_board',
    fileId: '97eeb4da-d402-4a89-b034-bcb277b9e65c'
  }
]

Simplified Database Schema

In traditional relational database design, associating two different tables often requires the creation of a "junction" or "bridge" table. This table is used to maintain many-to-many relationships between tables.

For example, if we have a table for Files and another for Entities, the junction table would typically contain two foreign keys, one pointing to each of the associated tables. Over time, as the number of entities or associations increases, these junction tables can become substantial in size and can potentially complicate the schema.

The createFileAssociation() will simplified the database schema. By using a function-based approach, there's no need to maintain separate junction tables. This reduces the number of tables in the database and streamlines the schema.
